EC-6203LLBC3

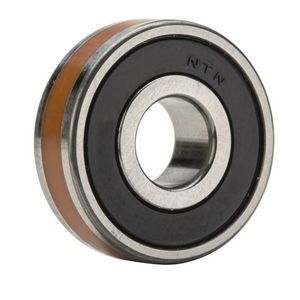

Expansion Compensating Bearing, Round Bore Standard Small, Series: EC-62, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 9600 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 18000 rpm Grease/21000 r
Factory Order
MFG #EC-6203LLBC3
IBT #89900032012
- Bearing Material: High Carbon Chrome SteelBore Diameter: 17 mmCage Material: Pressed SteelClosure Type: Double SealLoad Capacity: 9600 NMaximum Speed: 18000 rpm Grease/21000 rpm OilNumber Of Rows: 1Outside Diameter: 40 mmSeal Material: Nitrile RubberSeries: EC-62Temperature Rating: -40 to 120 °CType: Round Bore Standard SmallWidth: 12 mm
- Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications. NTN Expansion Compensating Bearing, Round Bore Standard Small, Series: EC-62, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 9600 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 18000 RPM Grease/21000 RPM Oil Maximum, -40 to 120 °C
NTN Bearing EC-6203LLBC3Expansion Compensating Bearing, Round Bore Standard Small, Series: EC-62, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 9600 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 18000 rpm Grease/21000 r
IBT #89900032012
MFG #EC-6203LLBC3
